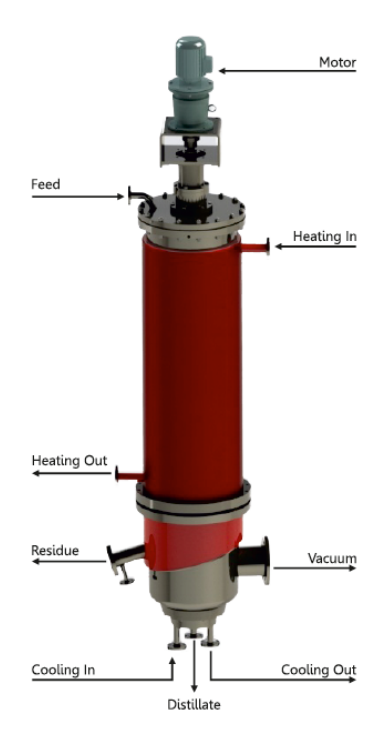

Short Path Distillation Unit(SPDU)
Short path distillation or molecular distillation is a liquid-liquid separation process for high boiling, High viscosity, and heat sensitive, readily oxidisable materials. It is distinguished from a standard Agitated Thin Film Evaporator by an internally mounted condenser. The vapor generated on the heated surface travels a very short distance to reach the condenser surface, thus eliminating pressure drop.
Features
- Minimum liquid hold up.
- Ideal for highly heat sensitive materials.
- Operates at 0.001 mbar.
- High Evaporation rates.
Applications
- Concentration of products in pharmaceuticals, bulk drugs, natural / synthetic vitamins.
- High vacuum distillation of Epoxy resins, plasticizers, and stabilizers.
- Product recovery from distillation column residues.
- Purification of natural and synthetic waxes.
- Refining of spent lube oil.
Manufacturing Capability
- Capacity Offered by us: 0.5 m² to 7.5 m²
- Designed to operate at a wide range of temperatures, i.e., 30°C to 300°C
- Designed to withstand a pressure of Full Vacuum to 2 bar(g)
- Can be fabricated in SS304, SS316, HC-22 & HC-276
